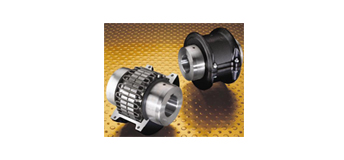

T-type Stelflex Grid Coupling Introduction
All Falk™ Steelflex® Couplings Possess the
Following Benefits
· High Ratings
· Extended Maintenance Periods
· Quick Installation
· Easy Maintenance
· Versatile Design
· Availability
· Protection Against Shaft Misalignment
· Protection Against Shock Loads, Vibration & Thrust Loads
General Information
– Rexnord standards apply unless otherwise specified.
– All Dimensions are for reference only and are subject to change
without notice unless certified.
– Unless otherwise specified, Falk coupling hub Sizes 1020 thru
1090 will be bored for CLEARANCE FIT with a setscrew OVER
the keyway. Sizes 1100 and larger will be furnished for
INTERFERENCE FIT without a setscrew (see Table 27, Page 43).
Recommended key sizes for the listed maximum bores are
shown in Table 13 on Page 36.
– Torque ratings of couplings utilizing Taper-Lock bushings can
differ from those that do not. Refer to Rexnord for details.
– If Falk is to supply coupling hubs bored for Taper-Lock
bushings, the bushing manufacturer MUST be noted on the
order.
– Consult Rexnord when limited end float is required.
